ZD30 Patrol Barra Engine Mounts

Moreno Engineering ZD30 Patrol Barra Engine Mounts

Description:

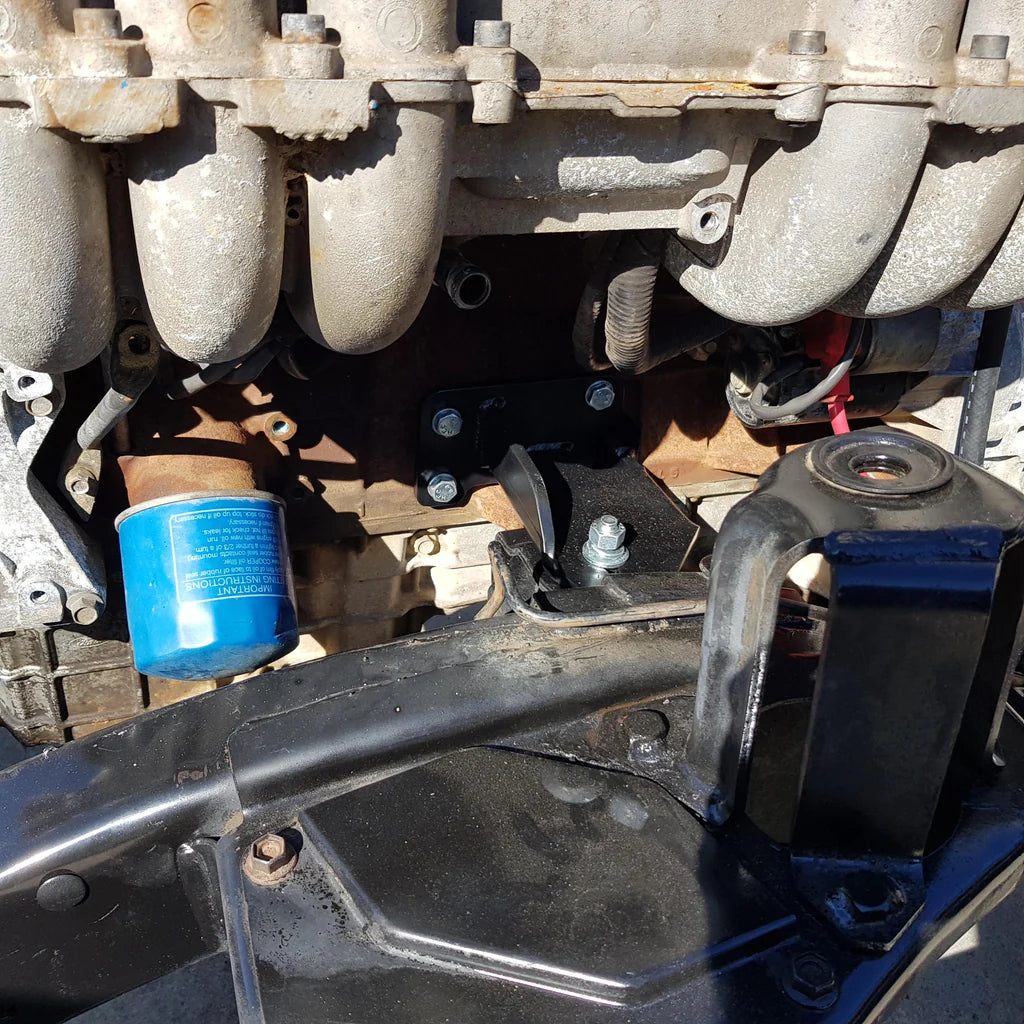

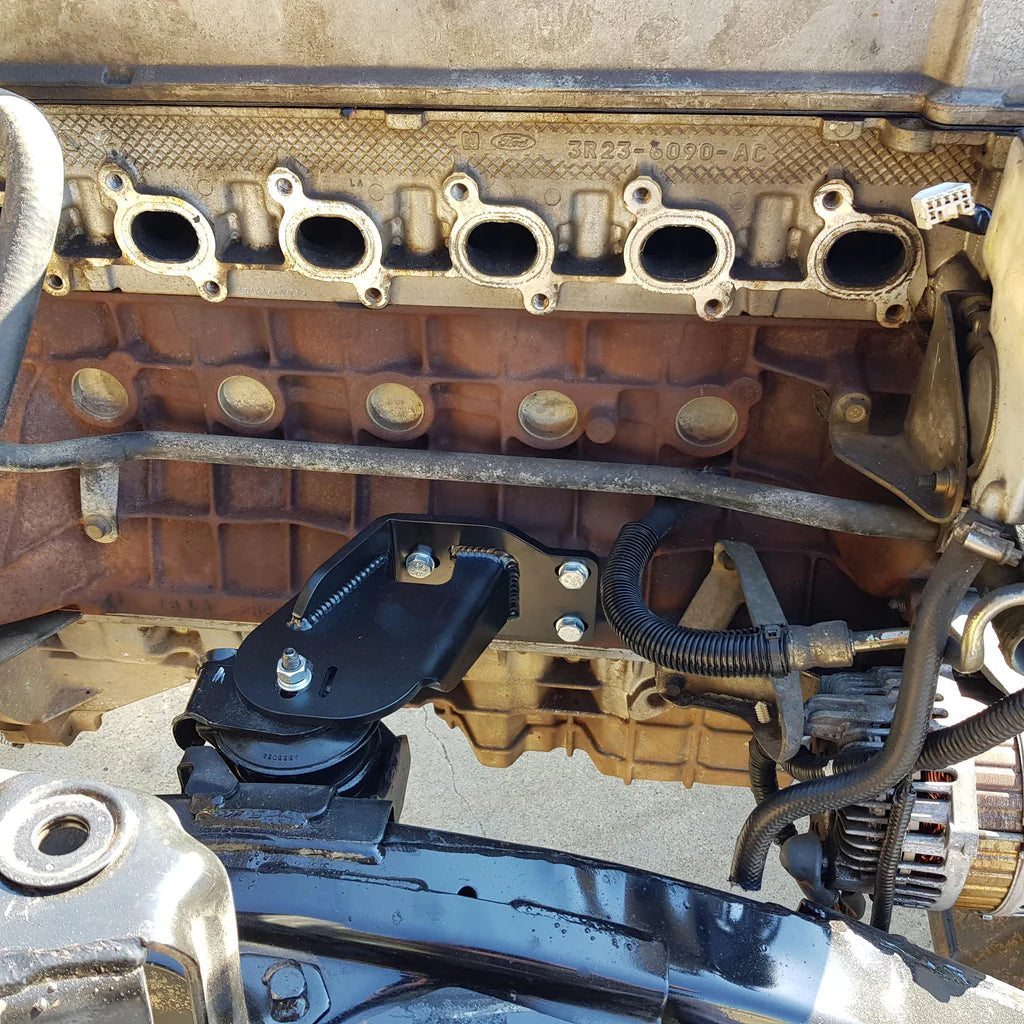

The Moreno Engineering Barra engine mounts allow you to bolt a Barra engine directly into a Nissan Patrol GU chassis originally fitted with the ZD30 engine.
No cutting or welding required.

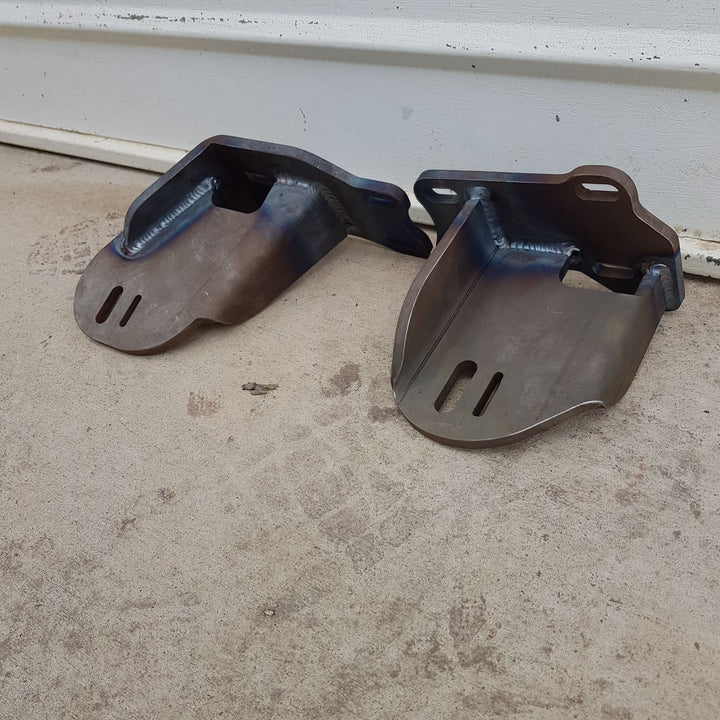

The plates are made from 8mm mild steel, CNC cut and folded, then MIG welded for strength and accuracy.

Supplied in a raw finish and must be painted or coated to prevent rust.

The brackets are designed to position the Barra engine level horizontally and maintain the factory driveline angle within ±0.5°.

Proudly Australian made, supporting local industry.
